Temperature sensor - DS18B20

https://www.aliexpress.com/item/1005006431677780.html

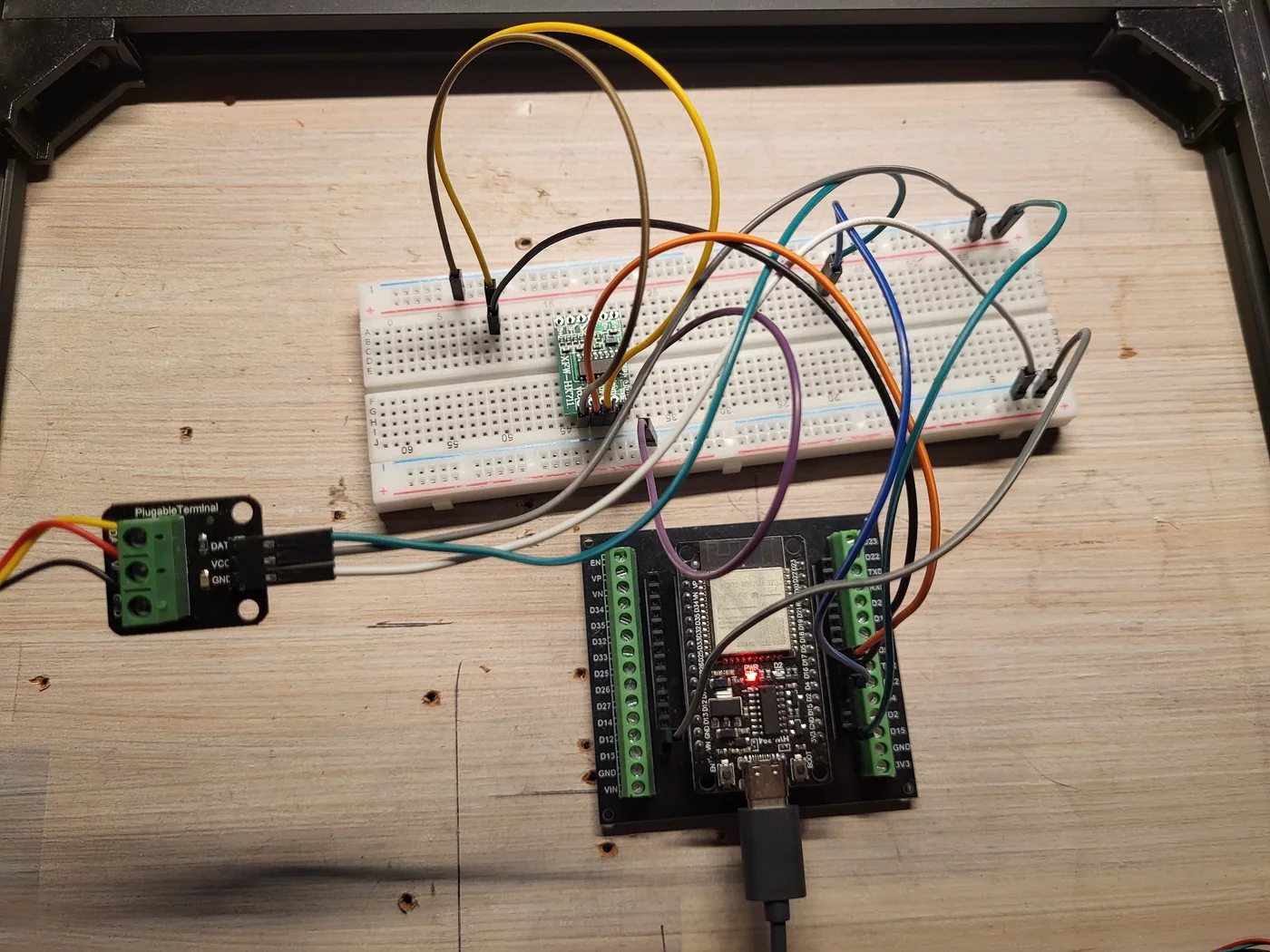

Wiring diagram

flowchart LR

subgraph ESP32

VCC1[3.3V]

GND1[GND]

GPIO4

end



subgraph DS18B20

VCC2

GND2[GND]

DAT

end



subgraph sensor

yellow

red

black

end



VCC1 <--> VCC2 <-->red

GND1 <--> GND2 <--> black

GPIO4 <--> DAT <--> yellow

DS18B20 Temperature Sensor:

• DATA to IO4 (with an optional 4.7kΩ pull-up resistor between DATA and VCC)

Description:

Pluggable terminal waterproof DS18B20 temperature sensor can be used in many places, such as soil temperature detection, hot water tank temperature control, waterproof DS18B20 temperature sensor must also be connected to a pull-up resistor can be used, for which we designed the converter to send use.

Product Specifications:

Temperature sensor supply voltage: 3.0V ~ 5.5V

Temperature sensor resolution: 9 to 12 adjustable resolution

Temperature range: -55 ~ +125 ° (lead can only withstand the highest temperature of 85 degrees)

Temperature Sensor Output Lead: Yellow (DATA) Red (VCC) and Black (GND)

Adapter Cables: DATA, VCC, BLK,

Suitable platform: for Arduino and Raspberry Pi

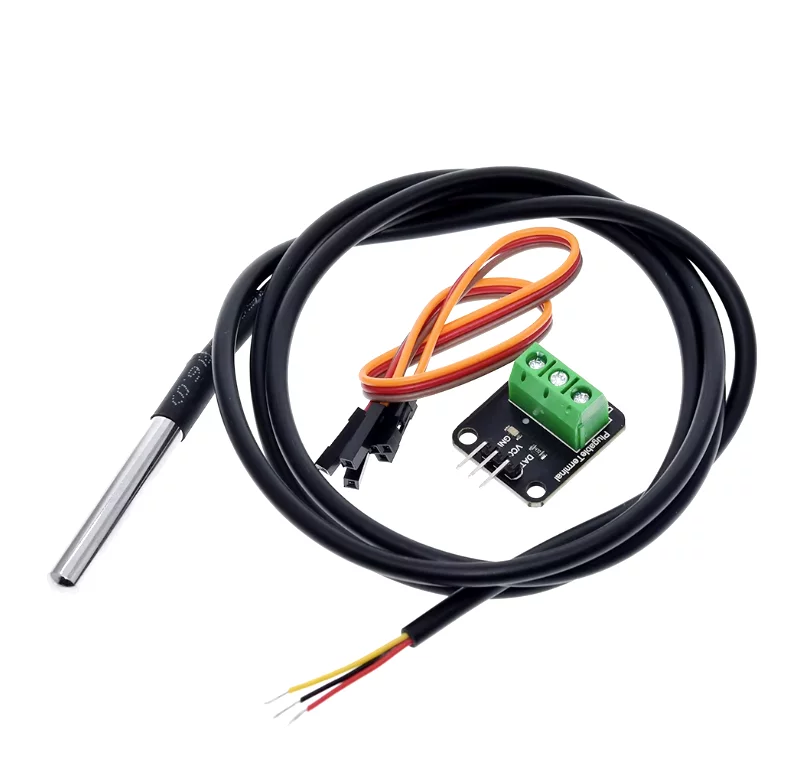

Package Included:

1PC * DS18B20 temperature sensor

1PC * pluggable terminal adapter

1PC * 3pin cable
